Products center

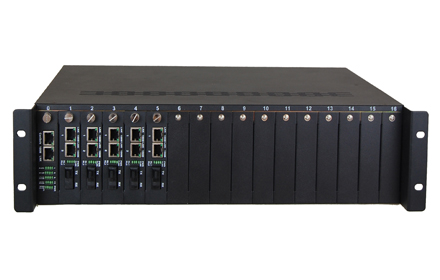

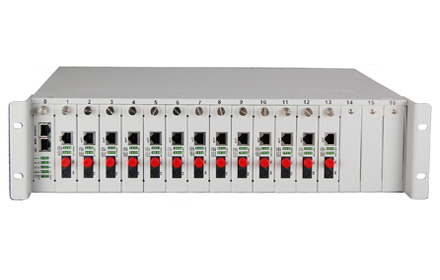

2U Intergrated Access Rack

Type:FCK12-a2/d2 Message

Description:2U Rackmount ，can insert a single port / 2 fiber media converter ，F(xiàn)E-E1，F(xiàn)iber modem

Product Description
              This is 2U 17 interfaces Rack. The rack height is 2U, can insert 17 block interface conversion cards,or1 block network management card and 16 feature cards, each card works independently. Different interface conversion cards can be inserted in and work simultaneously on the same rack. It uses communication isolation technology communication to separate system power from interface conversion card completely to ensure the reliability of the entire system
Functional Properties
? Can insert various types of interface converter produced by our company
? 19-Inch 2 U standard rack, using the principle of air, good rack radiating performance, ease of management and maintenance
? Can insert up to 16 hot-plug cards, each interface conversion card can achieve conversion function independently

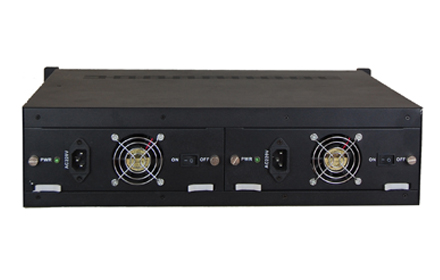

? Two power panel slots support mutual hot spare between two power units. Each power unit can support the entire rack work full of

       configuration.  Two power units work together through shunt on the one hand to reduce each power unit load, on the other hand

        by mutual hot spare to ensure if one power unit having problem within the time rack inner function panel can work

? Support SNMP Network Management
? Fully meet Telecom operation requirements, Mean time Between Failures (MTBF) is more than 50,000 hours.
Technical Parameters

u   Power

    Power supply:AC180V ~ 260V；DC–48V；DC +24V
    Maximum number of power modules: 2 power modules
    Maximum power parameters of the function card:  DC5V/1.5A (7.5W)
    Power consumption: 100W

u   Dimension

    Product size:        443X365X110mm(WXDXH)
    Piece weight : 3.5KG

u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity: 5%~95 % (no condensation)
    Storage temperature: -40°C ~ 80°C
    Storage Humidity: 5%~95 % (no condensation)


Application Scheme

Applications


DataSheet Download
?
